2026 Ford Super Duty Towing Capacity: Specs, Features & How It Works
The 2026 Ford Super Duty reaches 40,000 lbs of maximum towing capacity, backed by 1,200 lb-ft of torque from the High Output diesel. That figure beats the prior generation and positions the Super Duty at the top of the heavy-duty segment. This page breaks down how the towing system works, which trims include which features, and where to check in-stock trucks across our Texas locations.
Feature Overview: Why the Super Duty's Towing System Stands Apart
Raw towing numbers attract attention, but the 2026 Super Duty earns its position through the full system built around those numbers. Ford pairs the mechanical capacity with trailer-specific technology that monitors, corrects, and assists in real time. Buyers shopping in Abilene, San Angelo, Sweetwater, or any of our other Texas markets are frequently hauling livestock trailers, oil field equipment, or fifth-wheel RVs that push into the 20,000-to-40,000-lb range. The Super Duty was engineered for exactly those demands.

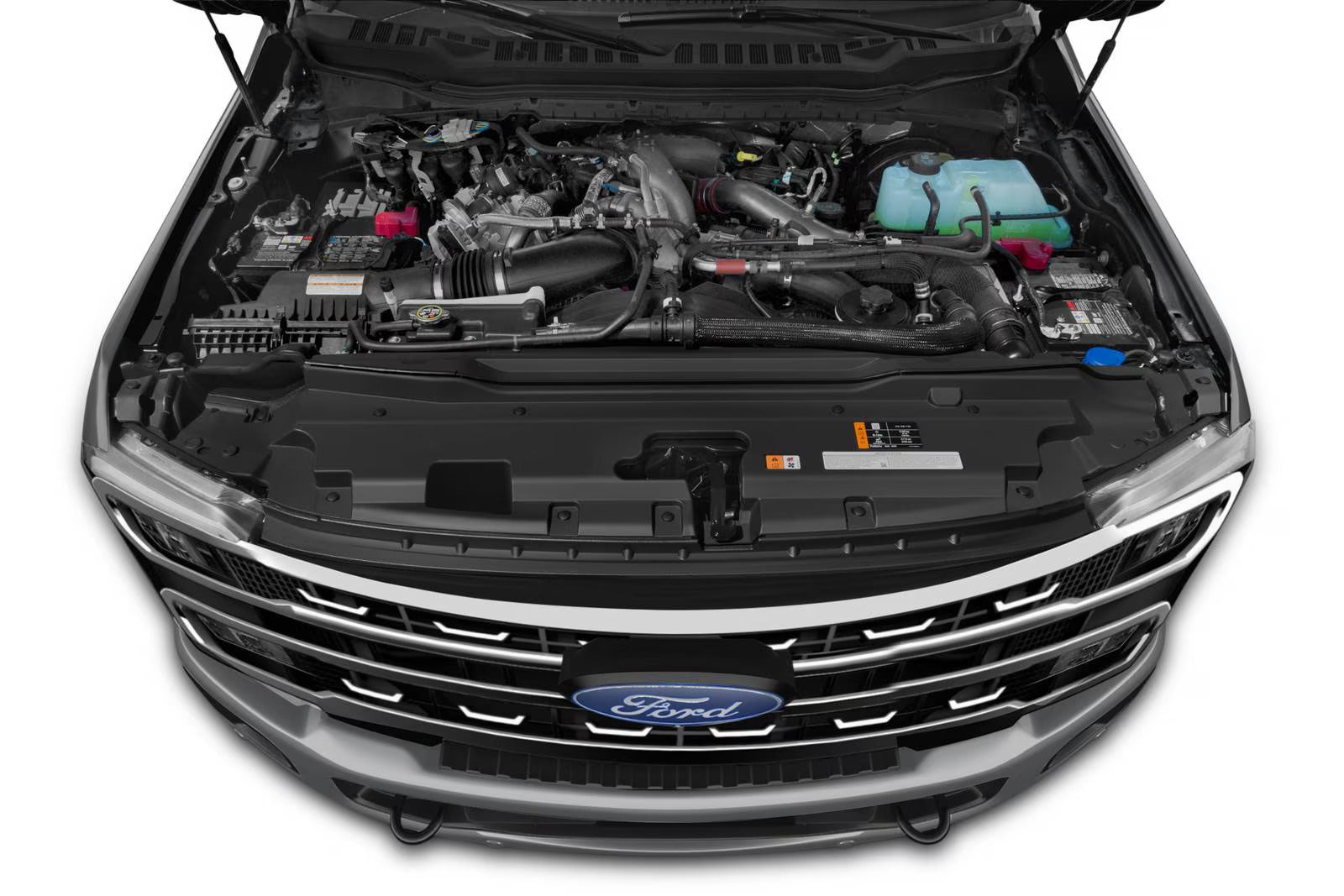

Four engine choices underpin the capability. The standard 6.8L V8 gas engine produces 405 hp and 445 lb-ft of torque, a baseline that is already competitive in this class. The available 7.3L V8 gas steps up to 430 hp and 485 lb-ft. For serious hauling, the 6.7L Power Stroke Turbo Diesel delivers 475 hp and 1,050 lb-ft, and the 6.7L High Output Power Stroke tops the lineup at 500 hp and 1,200 lb-ft of torque. That torque figure is the headline number, and it translates directly to confident, controlled pulling even on the long grades common on I-20 between Abilene and Eastland. Learn more about 2026 Ford Super Duty engine specs.
Payload reaches 8,000 lbs, and the available 8-foot bed adds versatility for contractors and ranchers hauling in-bed cargo alongside a loaded trailer. Every configuration connects to a TorqShift 10-speed automatic transmission, with the TorqShift-G variant for gas engines and TorqShift for diesel, each tuned to the torque output of its paired powertrain.
How It Works: The Technology Behind 40,000 lbs
The Super Duty's towing system is not a single feature. It is a layered group of sensors, software functions, and driver-assist tools that work together every time a trailer is connected.
- Integrated Trailer Brake Controller: This component is standard on every Super Duty trim. The brake controller reads trailer movement in real time and modulates braking force to the trailer axles independently from the truck. On a long downgrade near San Angelo, that coordination keeps the trailer from pushing the truck and reduces brake fade on both ends.
- Trailer Sway Damping: Also standard across all trims, this system detects lateral trailer oscillation and applies selective braking and throttle reduction to bring the trailer back into line before a driver has time to react manually. At highway speeds on open West Texas roads, sway events can escalate quickly without electronic intervention.
- Selectable Drive Modes: The TorqShift transmission includes Normal, Eco, Slippery, and Tow/Haul modes. Tow/Haul mode adjusts shift points to keep the engine in its optimal torque band and activates exhaust braking on diesel-equipped trucks, reducing the load on friction brakes during descents. The Tremor off-road package adds Rock Crawl and Trail Control modes for buyers who also pull trailers to remote job sites or ranch roads around Clyde or Anson.
Additional Advanced Towing Technology:

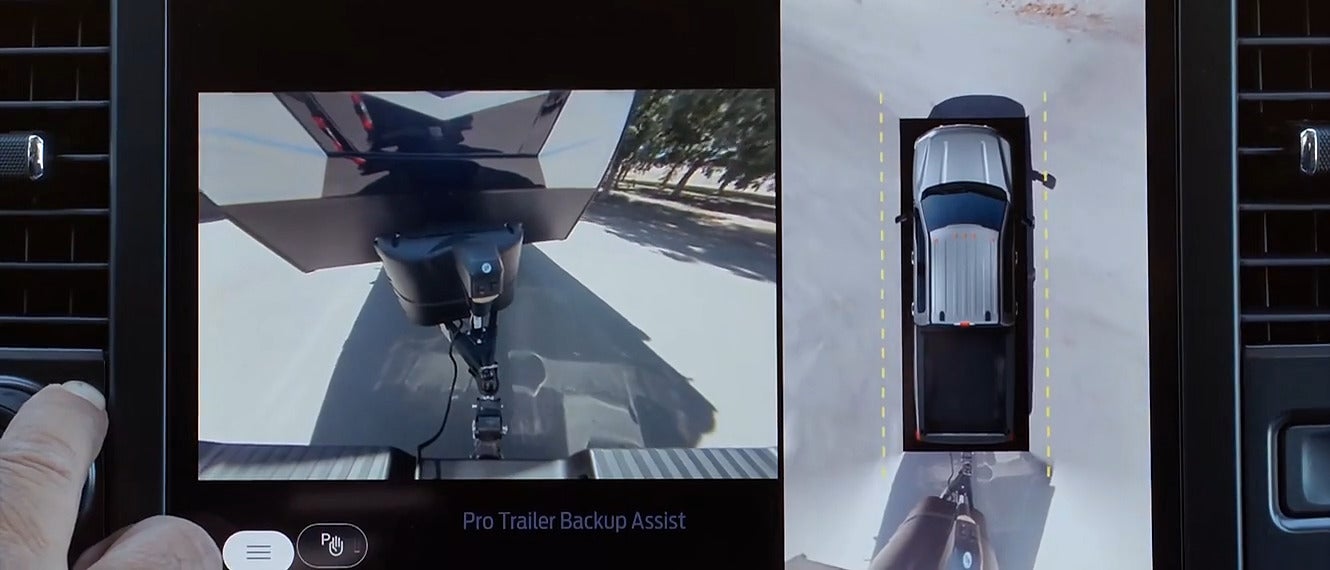

- Pro Trailer Backup Assist: Available on upper trims, this system uses the steering wheel as a directional controller for trailer backing. The truck calculates and executes the steering inputs needed to guide the trailer in the intended direction. Drivers who back long fifth-wheels or gooseneck trailers into tight spots at a job site or fairground will find this system reduces the skill and stress involved substantially.
- Pro Trailer Hitch Assist: Available alongside the backup system, this feature uses cameras to guide the truck's hitch into alignment with the trailer coupler. It removes the typical back-and-forth of positioning a ball hitch under a coupler when working alone.
- Onboard Scales with Smart Hitch: This available feature uses sensors integrated into the hitch to measure tongue weight and payload in real time. The readings display on the touchscreen so drivers can confirm they are within the truck's rated limits before pulling onto a public road. For buyers in Eastland or Sweetwater hauling equipment to job sites, that confirmation prevents overloading violations and protects both the truck and the trailer.
- Trailer Navigation: Available on equipped trucks, this function accepts trailer dimensions and routes accordingly, avoiding low bridges, weight-restricted roads, and tight turns that would be problematic with a long trailer in tow.
- Trailer Theft Alert via FordPass App: Available on connected trims, this feature sends a notification to a driver's phone if the trailer is moved when it should not be. For buyers leaving high-value equipment trailers overnight at a remote site near Cico or on the outskirts of San Angelo, that alert provides a practical layer of security.
- BLIS with Trailer Coverage: The Blind Spot Information System, available across the lineup, extends its monitoring zone to cover the full length of the trailer, not just the truck's rear corners. This matters most when changing lanes on the highway with a 40-foot trailer behind the truck. See more 2026 Super Duty safety technology.
- Embedded 5G Connectivity: This always-on connection powers real-time trailer alerts, navigation updates, and FordPass app integration without relying on a driver's phone signal, which can be unreliable on rural routes across West Texas.
Across the Trims: What Each Level Includes
Standard towing support hardware is consistent across the Super Duty lineup. Every trim, from the F-250 XL through the F-450, includes the Integrated Trailer Brake Controller, Trailer Sway Damping, a Rear View Camera, and Pre-Collision Assist with Automatic Emergency Braking.
The separation between trims happens in the available technology layer. The XL and XLT come with an 8-inch SYNC 4 touchscreen, wireless Apple CarPlay and Android Auto, and the foundational trailer brake and sway systems. Buyers who want Pro Trailer Backup Assist, Onboard Scales with Smart Hitch, Trailer Navigation, or BLIS with trailer coverage will find those features on Lariat and above, or through available packages on lower trims depending on configuration.
The Lariat also opens access to the B&O Sound System by Bang and Olufsen and the 12-inch touchscreen, which serves as the primary interface for trailer technology inputs and camera feeds. King Ranch and Platinum trims carry all available trailer tech as part of their more complete feature sets.
For maximum towing capacity, the F-350 and F-450 configurations support higher Gross Combined Weight Ratings than the F-250, and pairing either with the High Output Power Stroke diesel and a fifth-wheel or gooseneck setup reaches the 40,000-lb ceiling. Buyers at our Abilene and San Angelo locations regularly configure F-350 Crew Cab and F-450 trucks in exactly this way for agricultural and commercial use. Compare 2026 Super Duty F-250 vs F-350 vs F-450.
The available Pro Power Onboard system provides in-bed 120V outlets and up to 2 kW of power, which supports work-site tools at a trailer location without running a separate generator.
Real-World Benefit: What This Means on a West Texas Pull
A rancher outside Anson loading a 30,000-lb livestock combination onto a gooseneck trailer is not thinking in abstract spec terms. The High Output diesel's 1,200 lb-ft of torque arrives low in the RPM range, which means the truck pulls without needing to wind up the engine before moving. That low-end response is the difference between a smooth departure from a muddy lot and a tire-spinning struggle.
On the return trip down a highway grade, diesel exhaust braking in Tow/Haul mode holds speed without touching the brake pedal, extending pad and rotor life over thousands of miles of repeated towing. A contractor hauling equipment from Sweetwater to Eastland three days a week notices that difference in brake replacement intervals over a full work year.
Smart Hitch's tongue-weight readout removes the guesswork for buyers who swap trailers regularly. Load the flatbed, check the screen, and confirm the numbers before pulling out. If the distribution is off, the system tells the driver before the problem shows up in handling at speed.
Trailer Theft Alert gives a practical security advantage to buyers who park trailers at remote sites and return the next day. The FordPass notification arrives on a phone immediately when movement is detected, allowing the driver to alert authorities before the trailer travels far.
How It Compares: Super Duty in the Heavy-Duty Segment
Providing competitor specs that are not verified in this brief would not be accurate, so direct comparisons are intentionally kept to what is observable. The 40,000-lb towing ceiling and 1,200 lb-ft of torque are figures that lead the heavy-duty truck segment at the time of publication. (See Super Duty towing ratings on Ford.com)
The combination of factory-integrated trailer technology, a 10-speed transmission specifically tuned for towing, and available 5G-connected trailer monitoring creates a system that goes beyond raw engine output. Buyers who have driven comparable trucks from other brands frequently note that the Smart Hitch and Pro Trailer Backup Assist systems reduce the human skill required to operate at maximum capacity, which matters for operators who are not daily professional trailer handlers.
The diesel warranty also differentiates the Super Duty. Gas engine coverage runs 3 years and 36,000 miles on the powertrain, but Power Stroke diesel engines carry a 5-year, 100,000-mile powertrain warranty, reflecting Ford's confidence in the long-term durability of that engine under sustained towing loads.
Find the Right 2026 Ford Super Duty For Your Towing Needs
The 2026 Ford Super Duty builds its 40,000-lb towing ceiling on a foundation of four capable engines, a 10-speed transmission tuned for load management, and a technology suite that monitors, corrects, and assists through every mile of a heavy pull. Buyers across Abilene, San Angelo, Sweetwater, Clyde, Eastland, Anson, and Cico have access to the full Super Duty lineup through Arrow Ford's network. Whether the application is a gooseneck livestock trailer, a fifth-wheel RV, or a contractor's equipment flatbed, the right Super Duty configuration exists for the load.
Check current inventory to see which engines, trims, and trailer technology packages are available today.
Frequently Asked Questions
What is the maximum towing capacity of the 2026 Ford Super Duty?
The 2026 Super Duty reaches 40,000 lbs of maximum towing capacity when properly configured with the High Output Power Stroke diesel and appropriate trailer setup.
Which engine produces the most torque for towing?
The 6.7L High Output Power Stroke V8 Turbo Diesel produces 500 hp and 1,200 lb-ft of torque, making it the top choice for maximum towing performance.
Is Pro Trailer Backup Assist standard on all Super Duty trims?
No. Pro Trailer Backup Assist is an available feature, not standard. It is most commonly found on Lariat and higher trims or through available packages on XLT configurations.
Does the 2026 Super Duty come with a trailer brake controller standard?
Yes. The Integrated Trailer Brake Controller is standard on every Super Duty trim, from the base XL through the F-450.
What is Onboard Scales with Smart Hitch and why does it matter?
Smart Hitch measures tongue weight and payload in real time through sensors at the hitch and displays the readings on the truck's touchscreen. It confirms the trailer load is within rated limits before the driver pulls onto the road, which helps avoid overloading violations and unsafe handling conditions.
Can the Super Duty alert me if my trailer is stolen?
Yes. The available Trailer Theft Alert feature, connected through the FordPass app and the truck's embedded 5G connection, sends a notification to the driver's phone if the trailer moves without authorization.
What drive modes does the Super Duty offer for towing?
The TorqShift transmission includes Normal, Eco, Slippery, and Tow/Haul modes. Tow/Haul adjusts shift points and activates exhaust braking on diesel trucks. The Tremor package adds Rock Crawl and Trail Control.
Does the diesel engine on the 2026 Super Duty carry a longer warranty?
Yes. Power Stroke diesel engines carry a 5-year, 100,000-mile powertrain warranty, compared to 3 years and 36,000 miles on gas engines.
